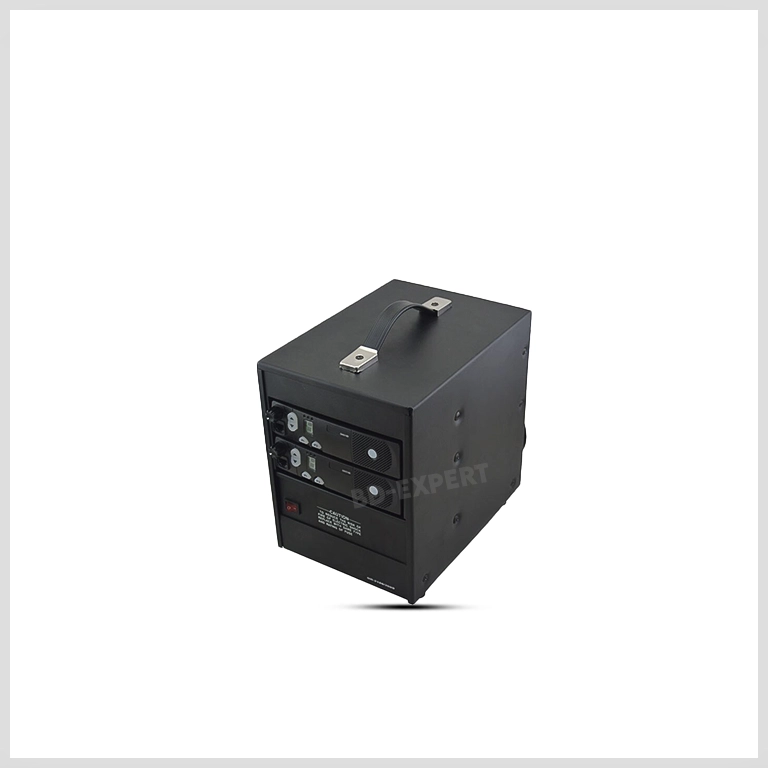

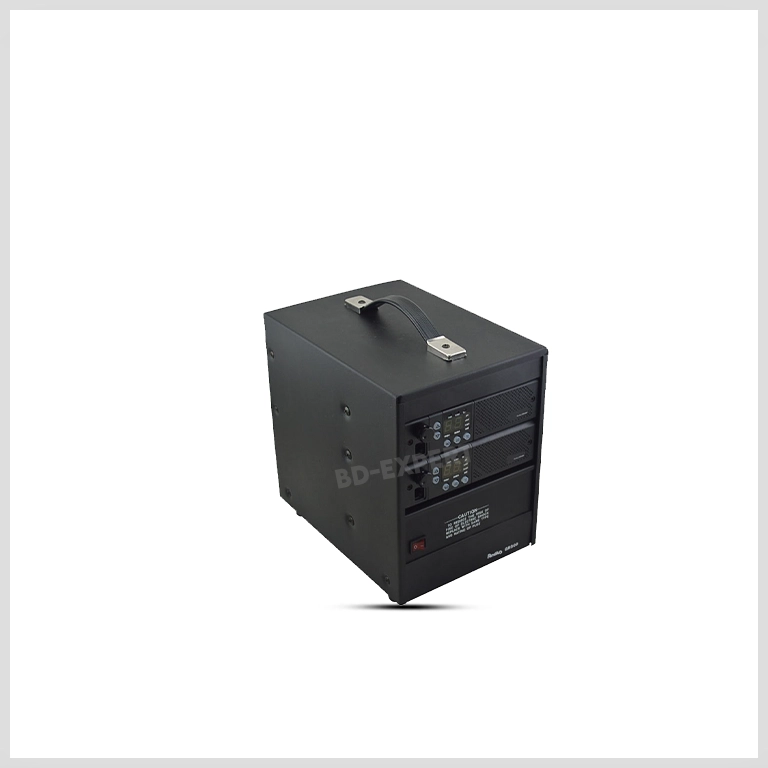

Brand New Motorola GR-3188/3688 Two-way Radio Walkie Talkie  Base Station/ Repeater UHF 403-470MHz 25Watts 8 Channels with DuplexerÂ
Importance: The frequency difference between TX frequency and  RX frequency in each Channel for UHF Repeater should be 10MHz, For Example:
CH1: TX 455.6375MHz RX:465.6375MHz (465.6375-455.6375=10MHz)
So you have to tell your desired Frequency to our salesman by leaving message or online after paying for your order. Thanks! Â
Features:
1.Large LCD Display
2.Busy Channel Locked
3.CTCSS and DCS
4.With Built-in Duplexer
5.PC Programming
6.25W Power Output
7.Time-out-Timer(TOT)
8.Scanning
9.25-30Km Communication Distance
Specifications:
| Model | GR-3188/3688 |
| Frequency range | 403-470MHz |
| Channels | 8 |
| Channel space | 25KHz/20KHz/12.5KHz |
| Operating temperature range | -25°C—60°C |
| Power voltage | 220V/110V AC |
| Dimension | 26.5*19.8*25.8cm |
| Weight | 11.3kg |
| Transmitter | |
| Power output | 25-30W |
| Frequency stability | ±3ppm |
| Modulated mode | 16KF3E(width)Â Â 8KF3E(narrow) |
| Spurious emissions | ≤-70db |
| FM noise | ≤-40db |
| Audio distortion | ≤5% |
| Max frequency deviation | ≤±5KHz(width) ≤±2.5KHz(narrow) |
| Receiver | |
| Frequency stability | ±3ppm |
| Sensitivity | Better than 0.25µV(width) Better than 0.28µV(narrow) |
| Receiving modulated
bandwidth |
≥±7KHz(width) ≥±3.5KHz(narrow) |
| Adjacent channel sensitivity | ≥70db |
| Intermodulation rejection | ≥65db |
| Spurious response rejection | ≥65db |
| Audio output power | 2W(inter) 8W(outside) |
