Uses digital signal processing
Koden’s advanced digital signal processing technology provides both higher resolution in shallow areas and high gain in deep areas.
Store the Image
You can store up to 10 images. Connecting the optional GPS sensor also allows you to display the position on the stored image.
Sona-Tone
This function uses sound to notify users when fish or the school is located.
Automatic functions make operation simple
Equipped with a full range of automatic functions. (GAIN, RANGE, SHIFT)

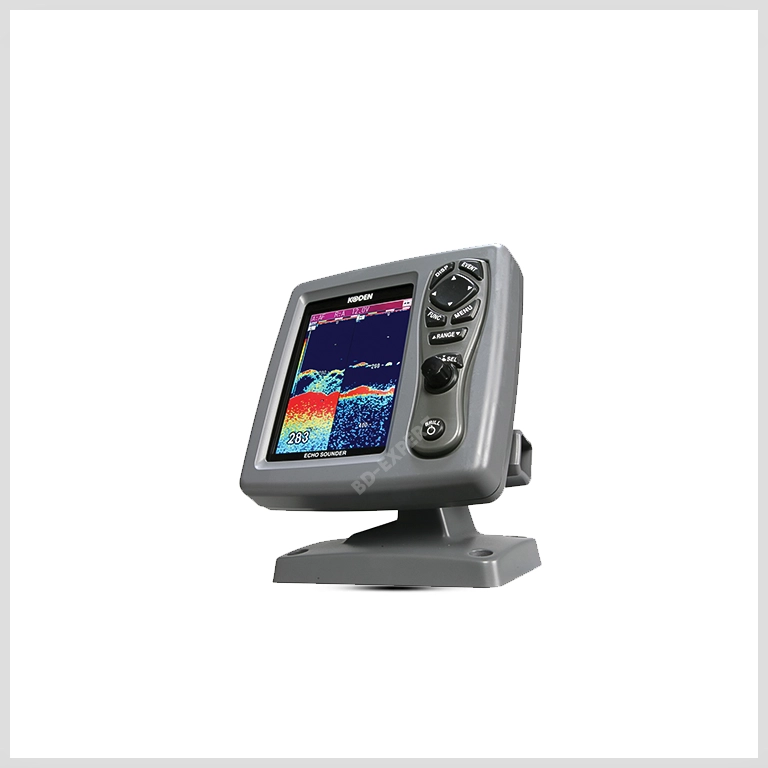

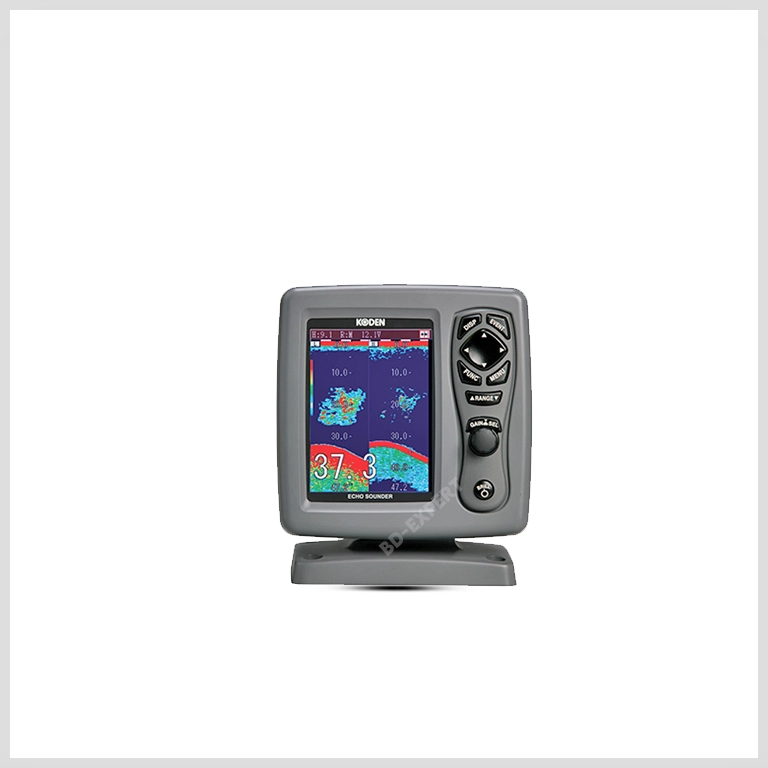

High-performance 5.7-inch LCD provides good visibility
The CVS-126 is also highly water resistant.
High visibility and drip-proof performance (IPX5) mean the CVS-126 can be installed in an open bridge.
Energy-efficient design
This is an energy-efficient model that achieves low power consumption using a white LED.
Display
Screen Image
Main Specifications
| Main functions | Zoom, Auto, A-scope, Presentation colors: 64, 16, 8 colors, Store image, Fishing Hot Spot, Sona-Tone |
| Basic range | 2.5 to 800 Meter/ Fathom/ Italian Fathom 10 to 2800 Feet |
| Output power (RMS) | 600 W |
| Output frequency | Dual 50/200 kHz |
| Water protection | IPX5 |
| Dimensions | 208(H) x 182(W) x 130(D) mm |
| Weight | 1.3 kg |
| Power supply | 10.8 to 31.2 VDC |
