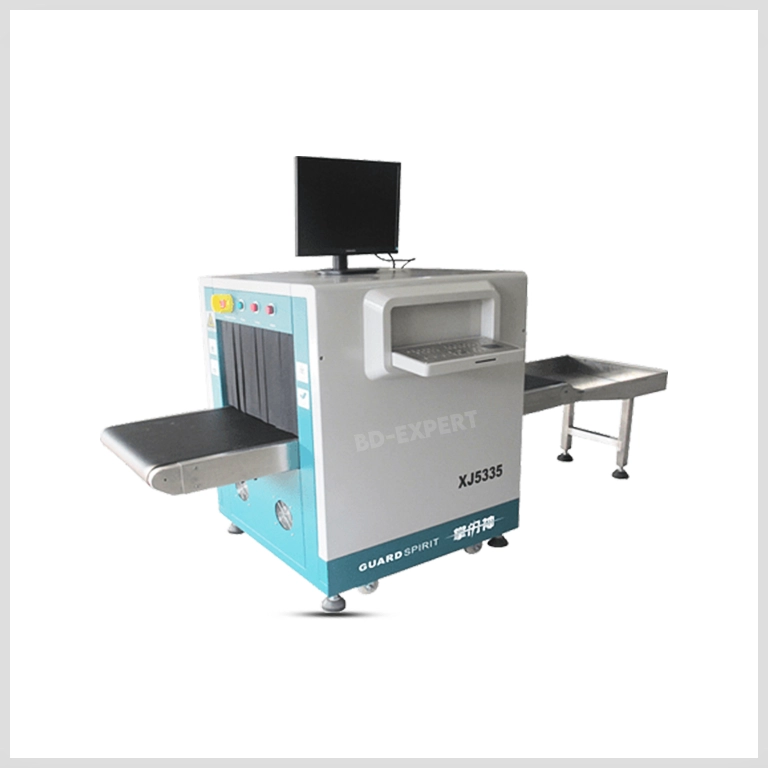

Product Description
| Tunnel Size |
530mm(W)*350mm(H) |
| Load Weight |
50Kgs |
| Conveyor Speed |
0.2-0.23m/s |
| Radiation Leakage |
0.10 μG/h |
| Penetration |
43mm steel |
| X-ray resolution |
40 AWG |
| X-ray Beam Direction |
From bottom |
| Beam Divergence |
80° |
| Tube Voltage |
80-160Kv |
| Electronic Current |
0.2-1.25mA |
| Cooling |
Sealed oil cooling + 100% Dutycycle |
Image Function:
*X-ray Converter Arrangement. Dual Energy L-shaped photodiode array detector
*Inorganic/Organic Stripping… ..Organic substances display in Orange, Inorganic
substances display in blue, mixtures display in green
*Maximum Image Resolution…1024*768
*Image Storage…………100,000pcs
*Image Display Color……….Black /White & Color
*Grey Level……………65536
*Zone & Zoom………… ..32 times zooming
*Other Function…………Alarm, Review, Density Enhancement, Negative/positive image,
Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,
Dangerous Alarm, System Failure Alarm etc
Working Environment:
*Work Temperature & Humidity. 0ºC~+45ºC/ 20%~95%(Non Cooling),
-10ºC~+45ºC/ 5%~95%(Optional)
*Storage Temperature & Humidity. -40ºC~70ºC/ 5%~95%(Non Cooling)
*Power……………….220VAC(+10%~-15%,,50Hz±3Hz)
