BAOFENG T1 Radio
The transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability
Feature
– Broadcast FM radio receiver (65-108Mhz)
– Alarm and built-in LED flashlight
– Max 20 channels
– Time count down (0.5 / 1hr / … / 8hrs)
– Voice prompt
– VOX (voice activated transmission)
– 50 CTCSS tone / 104 DCS code / nonstandard tone available
– Tail tone elimination
– Battery saving
– Width / Narrow band selection
– SOS call notice
– PC programming (programming cable not included)
| General | |
| Frequency Range | UHF: 400-470MHz |
| Channel No. | 20 |
| Frequency Stability | ±2.5ppm |
| Step Frequency | 12.5 / 25Kz |
| Antenna Impedance | 50Ω |
| Operating Voltage | DC 3.7V |
| Work Temperature | -20C to +60C |
| Battery Capacity | H-1500mAH (Li-ion battery) |
| Battery Life | About 12 Hours |

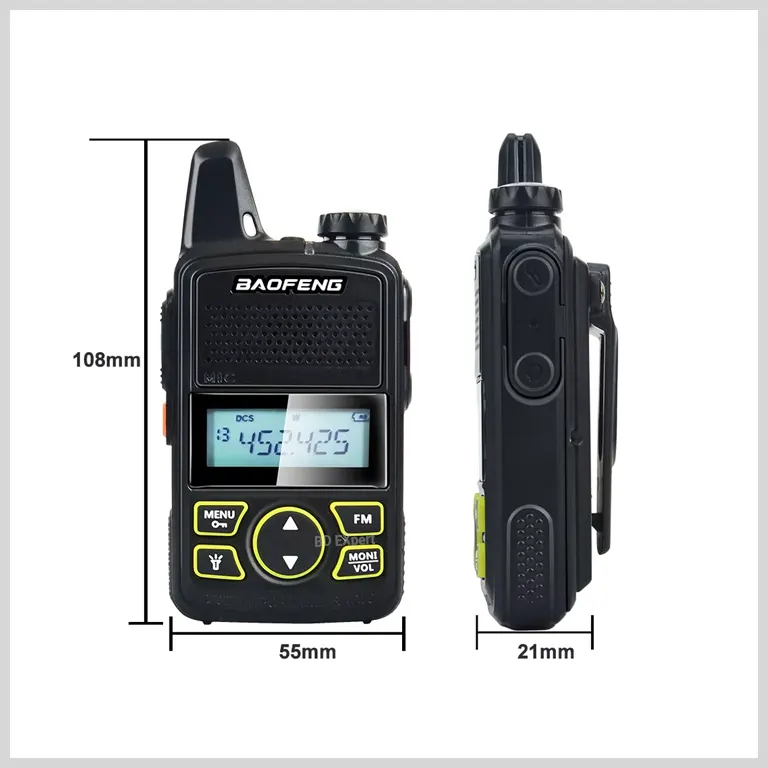

| Dimension W x H x D | 108 x 55 x 21 mm including antenna |
| Weight | 99g |
| Transmitter | |
| Output power | 0.5W / 1W |
| Modulation Mode | 16kΦF3E / 11kΦF3E |
| Maximum deviation | ≤5kHz(Wide) /≤2.5kHz(Narrow) |
| Spurious Radiation | ≤7.5μW |
| Adjacent Ch. power | ≤-65dB(Wide) / ≤-60dB(Narrow) |
| Audio Distortion | < 5% |
| SNR | ≥ -45dB / ≥ -40dB |
| CTCSS/DCS Frequency deviation (W/N Band) | 0.7±0.1kHz(Wide) / 0.4±0.1kHz(Narrow) |
| Intermediation sensitivity | 8-12mV |
| Transmitting Current | ≤ 1000mA |
| Receiver | |
| Sensitivity | < 0.25μ V (12dB SINAD) |
| Audio Power | 1W |
| Inter modulation Interference Resistance | ≥ 65dB (W) , ≥ 60dB (N) |
| Adjacent channel Selectivity (W/N Band) | ≥ 65dB (W) , ≥ 55dB (N) |
| Audio Distortion | 5% |
| Receiving current | ≤ 380 mA |
