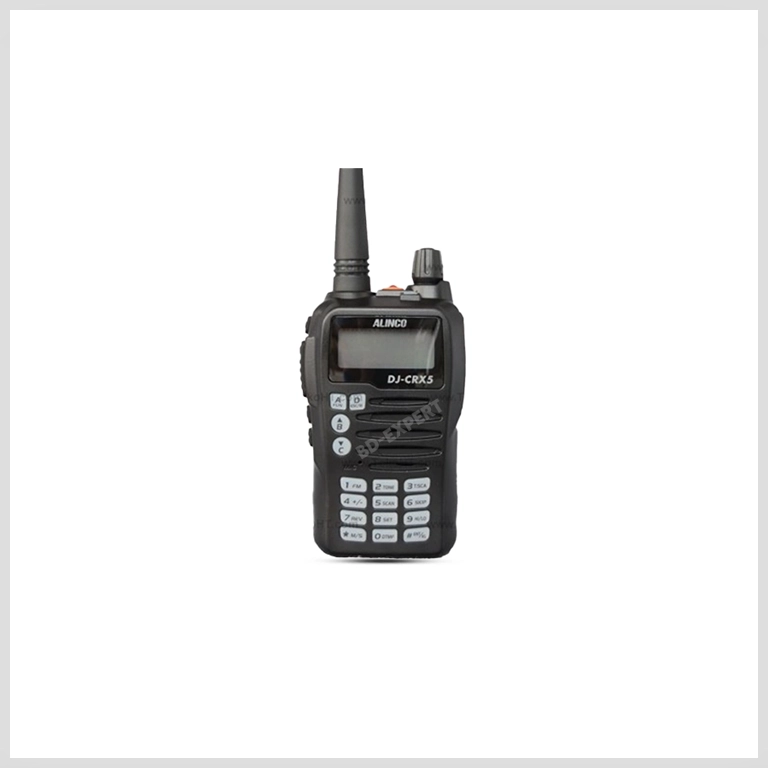

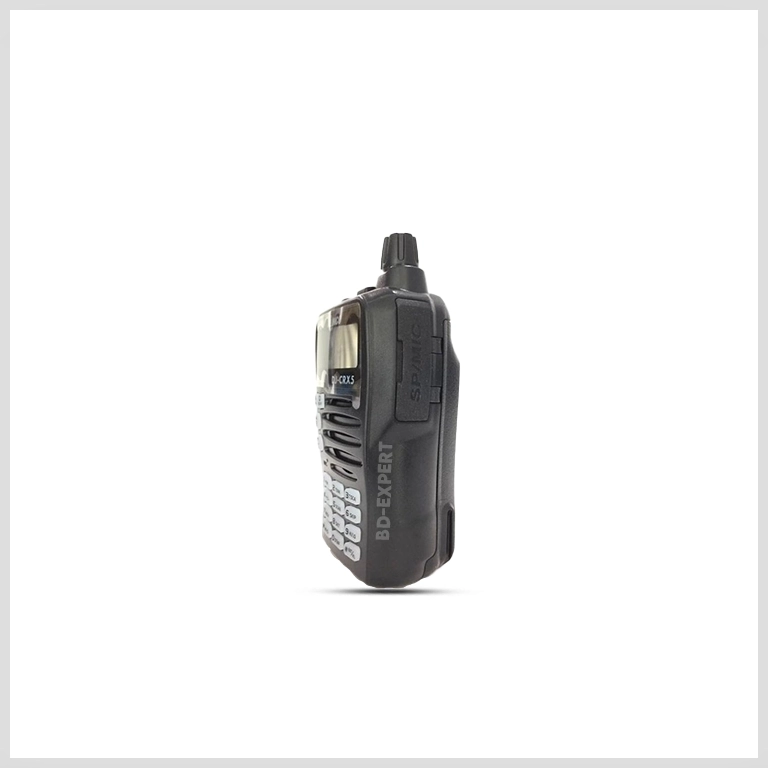

Alinco DJ CRX5

VHF 136-174MHZ DAN UHF 400-470MHZ

Engineered for success, this dual-bander is packed with features:
Large, dot-matrix, 3 color-selectable (orange,white,cherry-blossom) display and keypad
Semi-Duplex dualband, V/V-U/U and FM broadcast receiver
200 memory channels, any mix of VHF/UHF
Internal VOX
Alphanumeric channel labels
Direct frequency input from keypad
Landmobile-grade signaling features
Variety of scanning modes

Frequency range: [T: TX] 144 – 148MHz, 420 – 450MHz
[T: RX] 136 – 174MHz, 400 – 480MHz
Modulation: F3E (FM)
Frequency step: 2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50KHz
Memory channel: 200 memory channels in total
Antenna impedance: 50ohm unbalanced
Frequency stability: +/- 2.5ppm
Supply voltage: DC 7.4V (Battery)
Current consumption: 1400mA TX / 300mA receive at Max audio output
70mA squelched
Battery-save ON: average 27mA
Temperature range: Unit -20 ~ +55digC (-4 ~ 131digF)
Battery packs: -10digC to +45digC (+14 to +113digF)
